TP-Link TL-WPA4220 KIT 300Mbps AV600 WiFi Powerline Extender Starter Kit (with 2 LAN port) - 2 Unit Pack

One Touch Super Range Extension - Wi-Fi Clone Button simplifies your Wi-Fi configuration and helps build a seamless unified home network
HomePlug AV standard providing up to 500Mbps1 high speed data transmission over a home’s existing electrical wiring, ideal for lag-free HD or 3D video streaming and online gaming
Extend 300Mbps wireless connections to previously hard-to-reach areas of your home and office

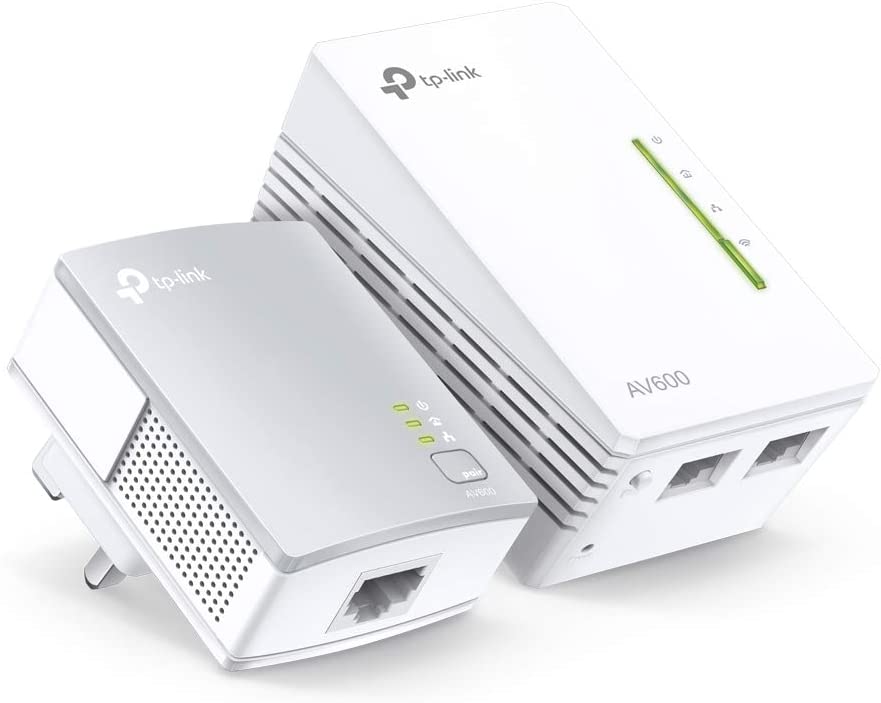

** TL-WPA4220T KIT contains TL-WPA4220 x 1 and TL-PA4010 x 1
What This Product Does

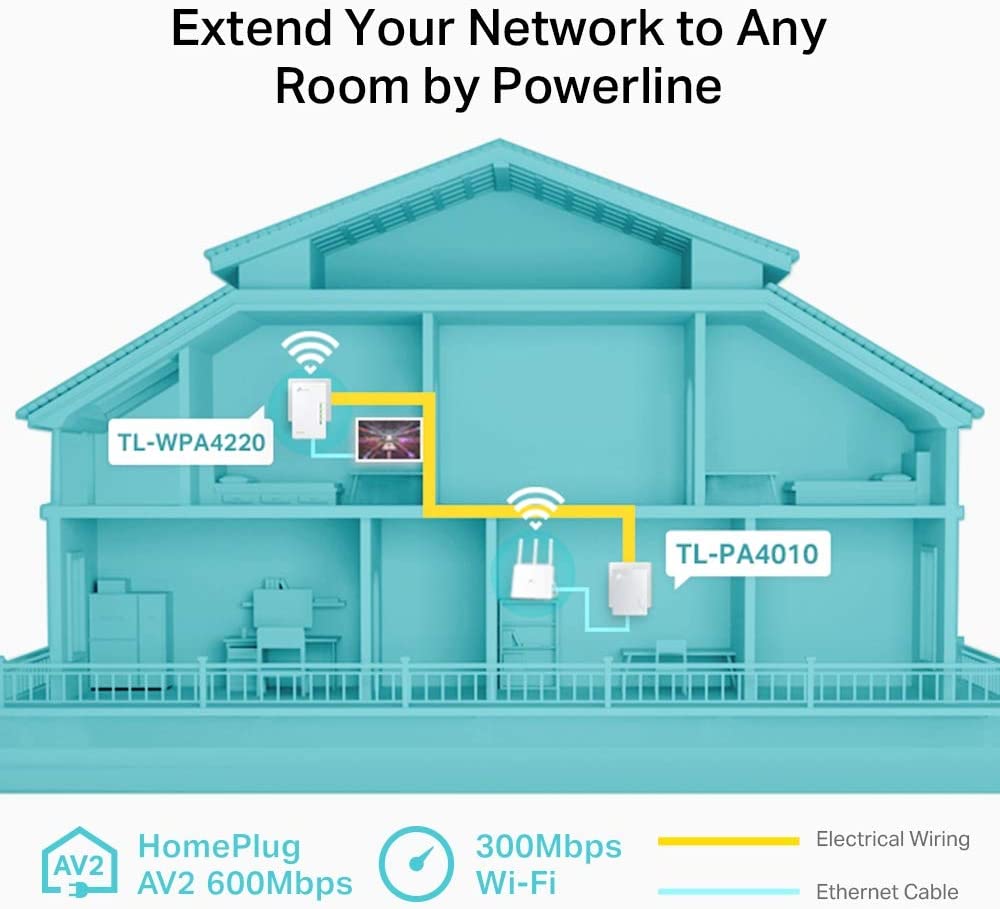

TP-LINK’s TL-WPA4220T KIT extends your Internet connection to every room of the house through your home’s existing electrical circuitry. The TL-WPA4220 features a Wi-Fi Clone Button enabling Super Range Extension, which means it can automatically copy the SSID and Password of your router. In this way, TL-WPA4220T KIT simplifies your Wi-Fi configuration and allows for seamless roaming within your home network.
One Touch Super Range Extension
With a Wi-Fi Clone Button enabling Super Range Extension, the TL-WPA4220 can automatically copy the wireless network name (SSID) and Password of your router at the push of a button. After pressing the button, you can place the powerline adapter anywhere you want wired or wireless access and enjoy seamless networking across your entire home or office.
Up to 500Mbps - Ideal for HD Video Streaming
With advanced HomePlug AV technology, TL-WPA4220T KIT provides you with stable, high-speed data transfer rates of up to 500Mbps on a line length of up to 300 meters. It is a great choice for a whole home solution to connect all network compatible devices - from computers, game consoles to set-top boxes for IPTV to printers and NAS hard drives.
Extend Wi-Fi Coverage to Every Room
With wireless speeds of up to 300Mbps, you can effortlessly extend your Wi-Fi network via the existing powerline and broadcast a wireless signal to share with all your Wi-Fi enabled devices in another area of your home or office.

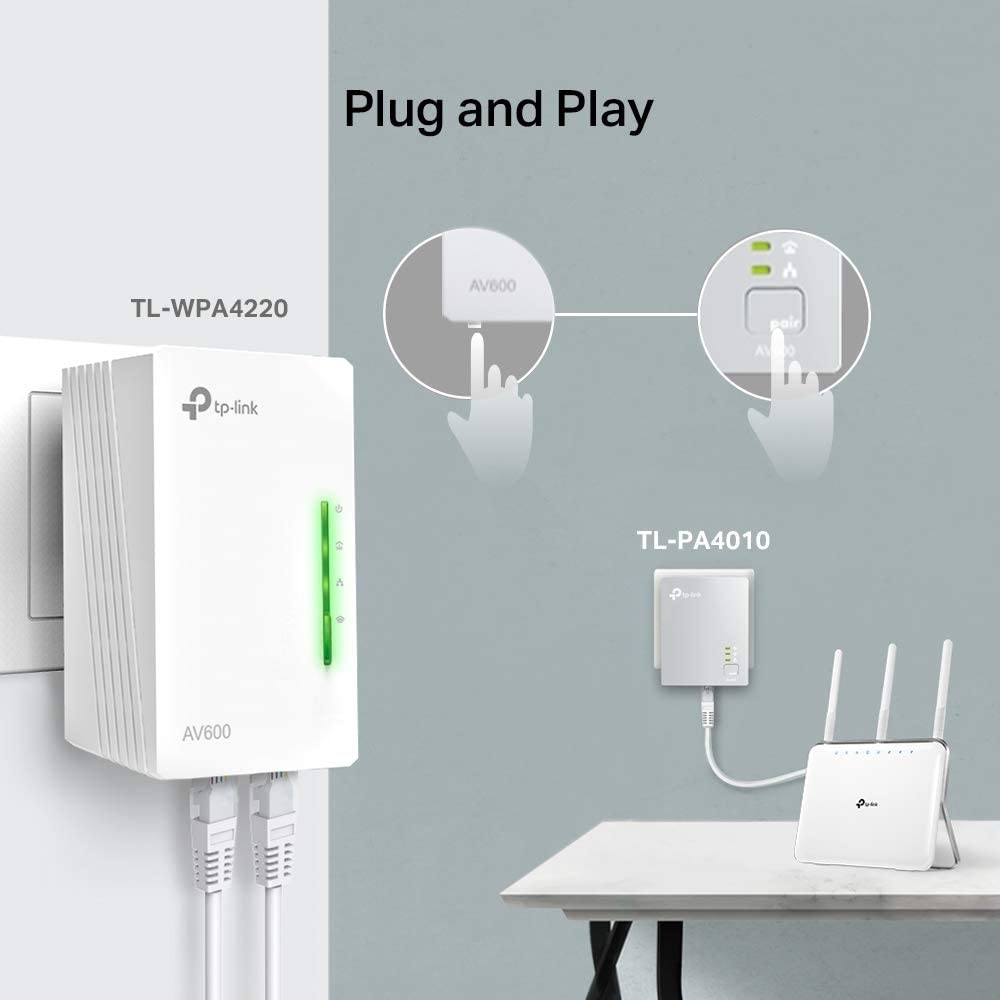

Plug and Play
You can set up a hassle-free Powerline network within minutes with TP-LINK’s powerline adapters, just plug in and play. Also, the adapters’ “Pair” buttons can be utilized for securing or managing multiple powerline adapters in your home powerline network.
1. Plug one Internet connected adapter into a nearby power outlet.
2. Connect additional adapters to PCs/laptops/Internet TVs or other networked devices via an Ethernet cable or Wi-Fi - and you're done!
*Recommended: Press the pair buttons for network security and data encryption. Note: Powerline adapters should be deployed on the same circuit and in set of two or more.
**The theoretical maximum channel data transfer rate is derived from HomePlug AV specifications. Actual data transfer rate will vary from network environment including: distance, network traffic, noise on electrical wires, building material and construction, quality of electrical installation and other adverse conditions.

HARDWARE FEATURES
Plug Type : UK
Standards and Protocols: HomePlug AV, IEEE802.3, IEEE802.3u, IEEE802.11b/g/n
Interface :

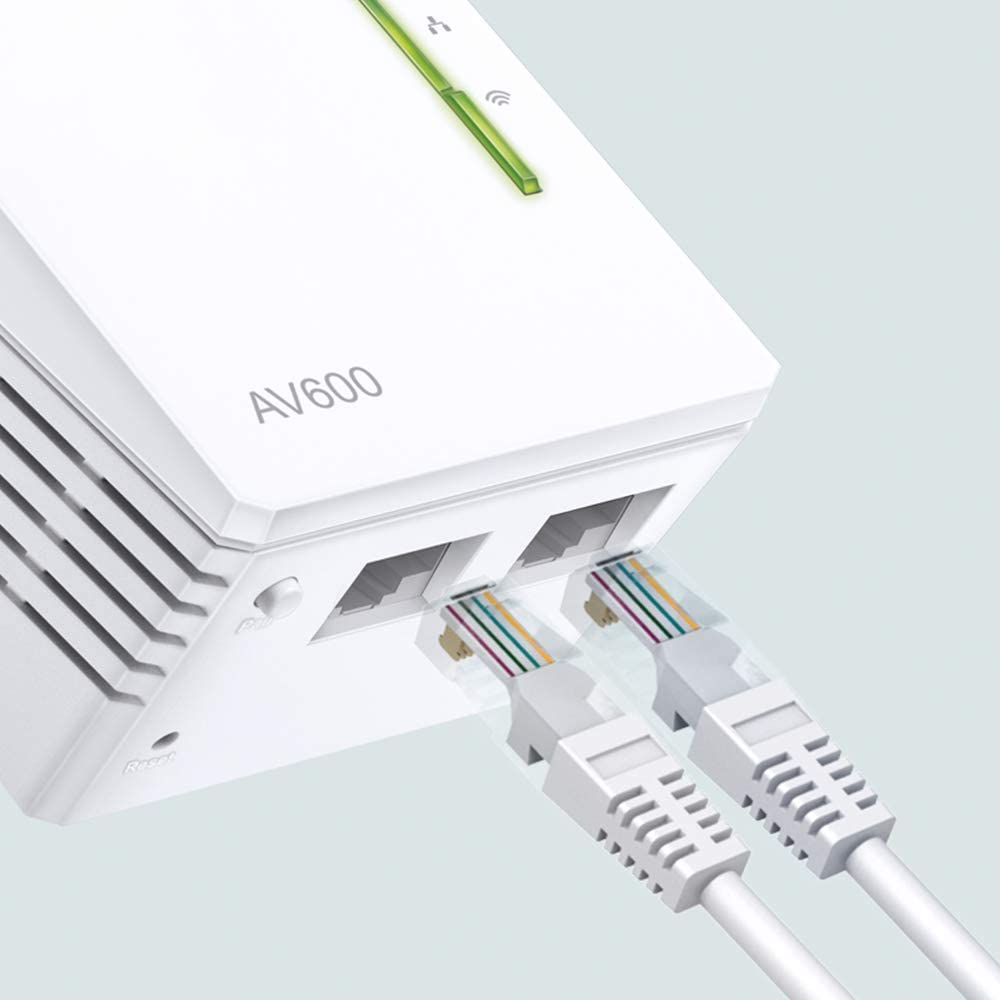

2*10/100Mbps Ethernet Port –TL-WPA4220
1*10/100Mbps Ethernet Port – TL-PA4010
Button: Pair, Reset, Wi-Fi/Wi-Fi Clone
Power Consumption :
Maximum: 12.916W (220V/50Hz)
Typical: 12.302W (220V/50Hz)
Standby: 8.780W (220V/50Hz)
LED Indicator: PWR, PLC, ETH, Wi-Fi/Wi-Fi Clone
Dimensions ( W x D x H ) : 3.7 x 2.1 x 1.6 in. (94×54×40mm)
Range : 300 Meters over electrical circuit
WIRELESS FEATURES
Frequency: 2.4-2.4835GHz
Signal Rate :
11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity:
270M: -68dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Wireless Security: 64/128-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
Advanced Functions : Enable/DisableWireless Radio,WMM, Wireless Statistics
Transmission Power :
CE:<20dBm(2.4GHz)
FCC:<30dBm
SOFTWARE FEATURES
Modulation Technology: OFDM (PLC)
Encryption :
Powerline Security: 128-bit AES
Wireless Security: WEP, WPA/WPA2, WPA-PSK/WPA2-PSK Encryption
OTHERS
Certification : CE, FCC, RoHS
Package Contents:
Powerline Ethernet Adapter TL-WPA4220 *1 & TL-PA4010 *1
6.5 ft. (2 m) Ethernet cable (RJ45)
Resource CD
Quick Installation Guide
System Requirements: Windows 2000/XP/2003/Vista, Windows 7/8, Mac, Linux
Environment :
Operating Temperature: 0°C~40°C (32°F ~104°F)
Storage Temperature: -40°C~70°C (-40°F ~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
