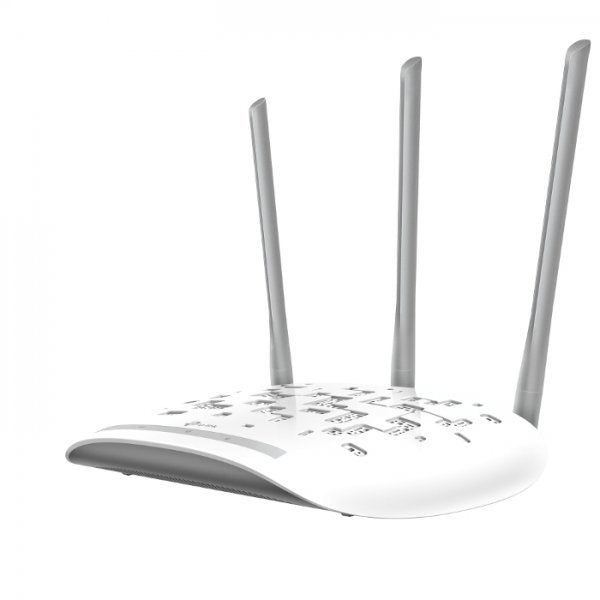

TP-Link 450Mbps TL-WA901N Wireless N Access Point/Universal Repeater (PoE)

450Mbps wireless transmission rate brings smooth wireless N experience
Supports multiple operating modes: Access Point, Range Extender, Multi-SSID and Client modes
Easily setup a WPA-PSK/WPA2-PSK encrypted secure connection at a push of the WPS button
Up to 30 meters (100 feet) of flexible deployment with included Power over Ethernet Injector
What This Product Does
The TP-LINK Wireless N Access Point TL-WA901N is designed to establish or expand a scalable high-speed wireless N network or to connect an Ethernet-enabled device such as a game console, digital media adapter, printer, or network-attached storage device to a wireless network. The AP supports a host of different functions that makes your wireless networking experience more flexible than ever before. Now, you can enjoy a better Internet experience when downloading, gaming, video streaming or any other application that you may wish to use.
Wireless N Speed & Range
Adopting IEEE 802.11n advanced MIMO (Multi Input Multi Output) technology, it simultaneously works through three antennas with smart antenna technology to Tx and Rx to overcome the interference and signal degradation when traveling long distances or through physical barriers in a small office or a large apartment, resulting in an incredible improvement in the wireless performance, even in a steel-and-concrete building. Above all, you could easily pick up the wireless network during long-distance connection where legacy 11g products may not!
Multiple Operating Modes
- Easy to Build WLAN
Supports Client, Multi-SSID, Range Extender, and AP operation modes to enable various wireless applications to give users a more dynamic and comprehensive experience when using your AP. Multiple operating mode also helps you easily build wireless network for hard-to-wire locations or eliminating wireless dead zone.
Passive PoE Supported
-More Flexible Deployment
The TL-WA901N is able to be powered using an Ethernet cable to simultaneously send data and electricity to wherever your AP may be located even up to 100 feet away. This feature multiplies your options allowing you to place the AP in a position that is most convenient to get the best signal possible, such as on the wall or on the ceiling of your office.
*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.

HARDWARE FEATURES

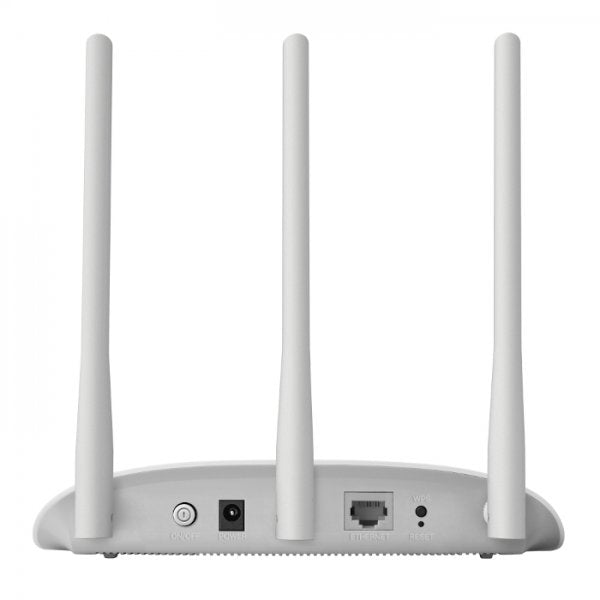

Interface:
1 x 10/100M Ethernet Port(RJ45)
Support Passive PoE
Button: Power On/Off Button, Reset Button, WPS Button
External Power Supply: 9VDC / 0.85A
Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions ( W x D x H ): 7.7 x 5.3 x 1.4 in (195 x 134 x 36 mm )
Antenna Type: 3 Fixed Omni-Directional Antennas
WIRELESS FEATURES
Frequency: 2.4 GHz
Signal Rate: 450 Mbps at 2.4 GHz
Reception Sensitivity:
11g 54M: -76dBm
11n 20Mbps: -73dBm
11n 40Mbps: -70dBm
Transmit Power: CE: <20dBm; FCC: <30dBm
Wireless Modes: Access Point, Range Extender, Client, Multi-SSID
Wireless Functions: Enable/Disable Wireless Radio, WDS Bridge, WMM,
Wireless Statistics
Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2
encryptions
DHCP: Server, DHCP Client List
Quality of Service: WMM
Management: SNMP
Advanced Functions: Up to 30 meters PoE is supported
OTHERS
Certification: CE, FCC, RoHS

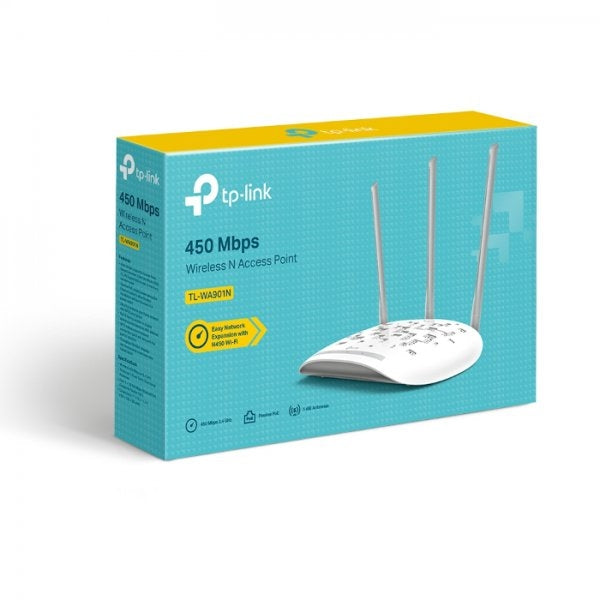

Package Contents:
Wireless N Access Point TL-WA901N
Power Adapter
Passive PoE Power Injector
RJ45 Ethernet Cable
Quick Installation Guide
System Requirements:
Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS,
NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
Java-enabled browser
Cable or DSL Modem
Subscription with an Internet Service Provider (for Internet access)
Environment:
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Protocol Support: IPv4, IPv6
