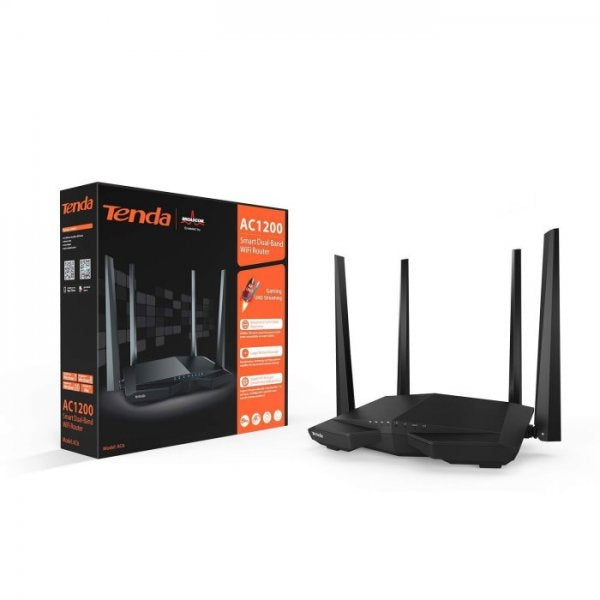

TENDA AC6 AC1200 Smart Dual-Band Wi-Fi Router (100mw High Power 4x 5dBi HG antennas) - AC6 (Tenda App can be installed to control Router functions via Phone/Tablet) Modes: Router/Repeater/WISP

AC6 is a Smart Dual-band WiFi Router with strong signal and stable performance. It supports 5th generation Wi-Fi standard 802.11ac and the concurent dual-band speed is up to 1167Mbps. 900MHz CPU from Broadcom offers fast & stable performance. AC6 has 2x through-wall ability than normal routers with its independent power amplifiers, beamforming+ Intelligent technology and 4x 5dBi HG antennas. You can enjoy lag-free gaming and uninterrupted video streaming anytime anywhere. Additionally, AC6 supports smart power saving technology, App remote management, creates a low-power consumption and smart eco-friendly life for your whole family.
Fast 11ac speed ups to 1167Mbps, delivering both 867Mbps at 5GHz and 300Mbps at 2.4 GHz concurrently.
Broadcom Chip with 900MHz CPU and 3x processing speed provide better compatibility and superior stability.
High powered amplifiers and external antennas for whole-home coverage.
Beamforming+ technology boosts range for the 802.11ac WiFi devices.
Smart managements of WiFi schedule, LED indicator and power saving all are for your healthy E-life.
30-second easy setup.

Standards & Protocol: IEEE802.3, IEEE802.3u

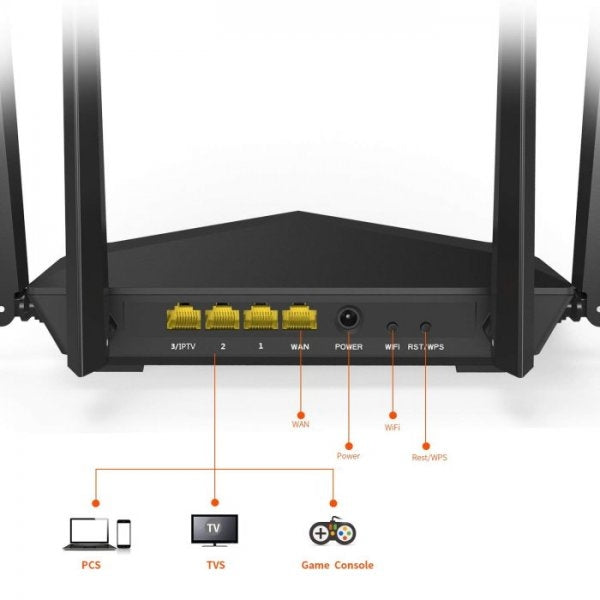

Interface:
1 x 10/100Mbps WAN port
3 x 10/100Mbps LAN ports
Antennas: 4 x 5dBi external antennas
Buttons:
1 x WiFi on/off
1 x Reset/WPS button
LED:
1 x System
1 x WAN
1 x LAN
1 x 2.4G
1 x 5G
1 x WPS
Power Consumption:
Input: 100-240V—50/60Hz, 0.2A
Output: DC 12V==1A
Wireless Standards:
IEEE 802.11ac/a/n 5GHz
IEEE 802.11b/g/n 2.4GHz
Data/Signal Rate:
5GHz: Up to 867Mbps
2.4GHz: Up to 300Mbps
Frequency: Simultaneous dual band 2.4 & 5GHz
Transmit Power:
CE: <20dBm(2.4G), <23dBm(5G)
FCC: <30dBm
Wireless Security:
WPA-PSK/WPA2-PSK
WPA/WPA2
Wireless Security: Enable/Disable
WPS (WiFi Protected Set-up)
Fast encryption
Internet Connection Type:
PPPoE
Dynamic IP
Static IP
PPPoE (Russia)
PPTP (Russia)
L2TP (Russia)
Operating Mode:
Wireless Router Mode
Universal Repeater Mode
WISP Mode
DHCP Server:
DHCP Server
DHCP Client List
DHCP Reservation
Virtual Server:
Port Forwarding
DMZ Host
UPnP
Security:
Client Filter
Parental Control (support black list and white list)
Remote Web Management
Firewall:
Forbid UDP flood attack
Forbid TCP flood attack
Forbid flood attack
Forbid WAN PING from internet
DDNS:
Support DynDNS
No-ip
3322.org
Oray.com
88ip
VPN:
IPsec pass through
PPTP pass through
L2TP pass through
PPTP server
PPTP client
L2TP client
Package Contents:
AC1200 Smart Dual-Band WiFi Router
Power Adapter
Install Guide
Ethernet Cable
Dimension (W x H x D): 220 x 141.5 x 49 mm
Additional Features:
Smart WiFi Schedule
Smart Power Saving
Smart LED on/off
Tenda Cloud
Tenda App
Bandwidth Control
Guest Network
IPTV
MAC Clone
Static Routing
System Log
Backup & Restore configurations
Firmware upgrade online
Firmware upgradeable via browser
SSID Broadcast: Enable/Disable
Transmission Power: high, medium, low
Beamforming
Operating Temperature: 0℃ - 40℃
Storage Temperature: -40℃ - 70℃.
Operating Humidity: 10% - 90% RH non-condensing
Storage Humidity: 5% - 90% RH non-condensing
Default Access: tendawifi.com
Manufacturer's Website: www.tendacn.com/en/default.html

Tenda App in mobile phone client, and then manage Tenda router (Parental Controls, Access Control, Power Saving, Guest Access, Signal Optimized, Security)
https://www.tendacn.com/en/faq/2993.html
