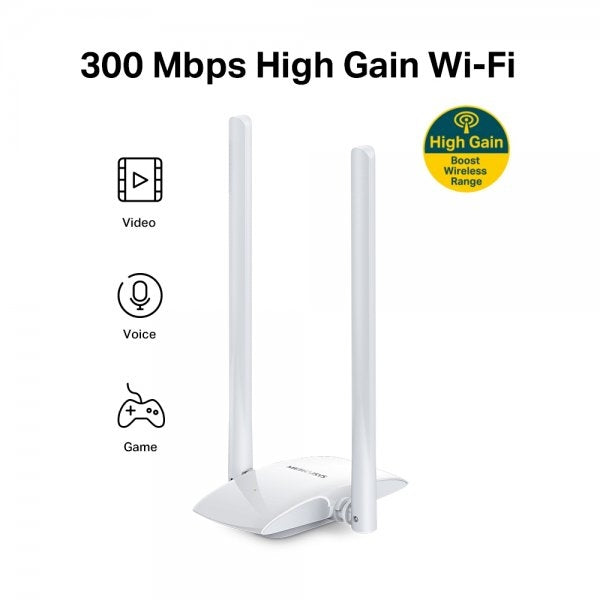

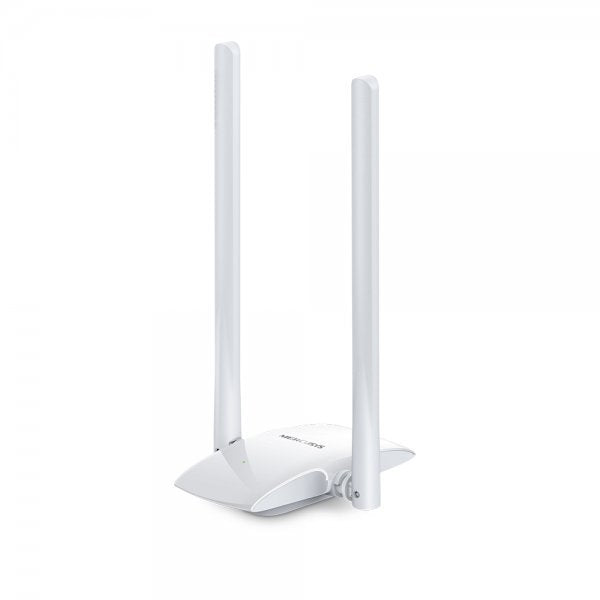

Mercusys MW300UH 300Mbps High Gain Wireless USB Adapter

Provides fast 300Mbps Wi-Fi connections for wired devices
Two 5dBi high gain antennas deliver enhanced reception and transmission performance
With 2×2 MIMO, users can easily access to high-speed wireless connection
Supports Windows 10/8.1/8/7/XP (32/64bit)

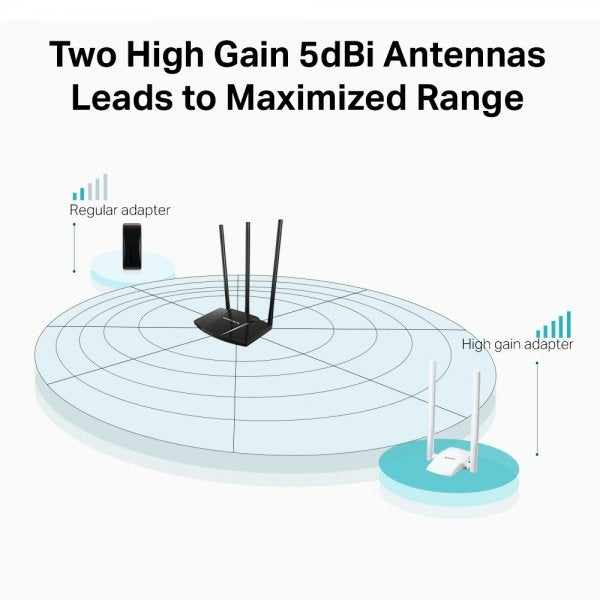

Two High Gain 5dBi Antennas Leads to Maximized Range
MW300UH has two high-gain external antennas to ensure stronger signal transmission and reception, which helps users to gain a stable Wi-Fi connection across their home.
Desktop Design Greatly Avoids Signal Blocking
The cable makes it easy to find a spot for MW300UH in your workplace. Moreover, compared to the slot-inserted adapters, this design allows you to put it nearer to the router, in which way it can receive stronger signals.
Easy Setup
A friendly user interface on a CD for simple installation.

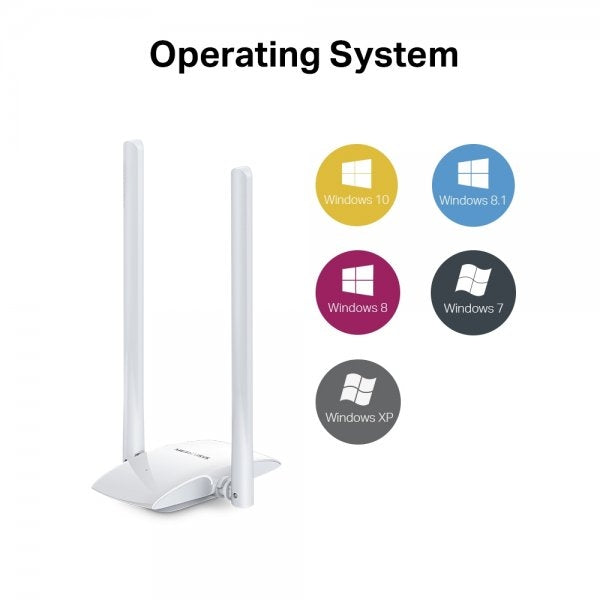

Operating System
Compatible with Windows 10/8.1/8/7/XP
*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) AP limitations, including rated performance, location, connection quality, and AP condition. *To ensure compatibility, you may need to update the adapter’s drivers after an OS update. You can find our latest drivers in the download center at http://www.mercusys.com/en/support.

Antenna Type
External
Dimensions (W X D X H)
4.46 × 2.51 × 0.85 in. (without antennas)
4.46 × 3.96 × 7.92 in. (with vertical antennas)
113.2 × 63.8 × 21.7 mm (without antennas)
113.2 × 100.5 × 201.1 mm(with vertical antennas)
Signal Rate
11n: Up to 300 Mbps (Dynamic)
11g: Up to 54 Mbps (Dynamic)
11b: Up to 11 Mbps (Dynamic)
Wireless Standards
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency
2.400 - 2.4835 GHz
Reception Sensitivity
300M: -68 dBm@10% PER
270M: -68 dBm@10% PER
144M: -71 dBm@10% PER
130M: -71 dBm@10% PER
54M: -74 dBm@10% PER
11M: -86 dBm@8% PER
6M: -90 dBm@10% PER
1M: -94 dBm@8% PER
Interfaces
Micro USB 2.0
Certifications
CE, ROHS
Package Contents
300 Mbps High Gain Wireless USB Adapter (MW300UH)
Quick Installation Guide
Resource CD
USB Cable (Micro USB to USB A)
Environment
Operating temperature: 0⁰C ~ 40⁰C (32⁰F ~ 104⁰F)
Storage temperature: -40⁰C ~ 70⁰C (-40⁰F ~ 158⁰F)
Operating humidity: 10% ~ 90% Non-Condensing
Storage humidity: 5% ~ 90% Non-Condensing
Transmission Power
≤20 dBm (EIRP)
Wireless Security
WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
System Requirements
Windows 10/8.1/8/7/XP (32/64 bit)
